Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235

Jiangsu hongguang steel pole co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235 from wholesalers

    Buy cheap Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235 from wholesalers
    • Buy cheap Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235 from wholesalers
    • Buy cheap Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235 from wholesalers

    Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235

    Direct Buried 3.5mm Thick Polygonal 12m Hot Roll Steel Electric Pole


    Steel Electric Pole Production Line


    Before galvanization, we will check the pole quality during the fabrication process from cutting raw plate, bending/forming, automatic welding to drilling holes. Then after hot dip galvanization, we will check the diameters, galvanization thickness and do the load test according to clients' different requirements and then deliver the poles on time based on the contract.

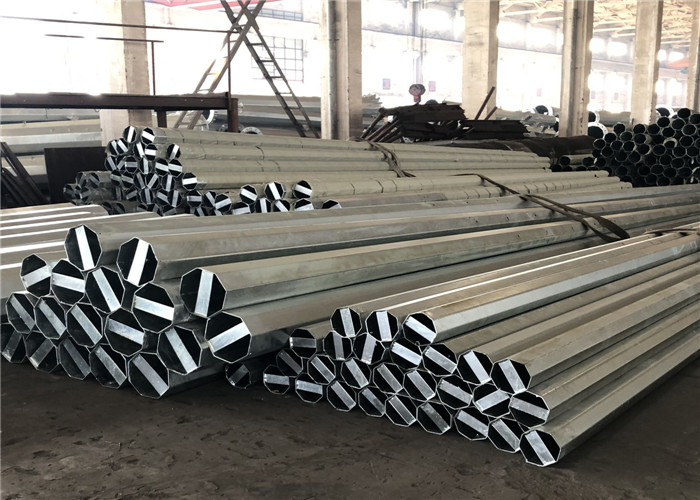

    Product Show:

    Steel Pole of National Electrification Administration (Philippines)
    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
    Height
    (ft)
    Thickness
    (mm)
    Top diameter
    (mm)
    Butt diameter
    (mm)
    Design Load
    (kgf)
    Yield Stress
    (MPa)
    Zinc Coating
    (micron)
    25
    2.5
    120
    152
    300
    345
    86
    30
    3.0
    127
    226
    500
    345
    86
    35
    3.0

    127

    248
    500
    345
    86
    40
    3.0
    127
    317
    500
    345
    86
    45
    4.0
    127
    328
    750
    345
    86

    Steel Electric Pole Product Description:

    Products
    • 3.5mm Thick Polygonal 12m Hot Roll Steel Electric Pole

    Application
    • Electrical Power Transmission

    Standrad
    • NEA Standard

    Painting
    • According to clients' request

    Shape
    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Galvanization
    • Accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
    Welding
    • Welding of galvanized steel power pole complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • Internal and external welding makes the galvanized steel power pole more beautiful in shape
    Export Foreign Country
    • Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc

    Steel Electric Pole production Process:

    1. Raw materialtest :When purchasing the raw material(steel plate ),on sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

    2. Cuting :Cuting the raw material that have meet all the standard required into different length and width .


    3. Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .


    4. Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.


    5. Dimension verify :Afer welding ,check the diameter ,length according to the drawing .


    6. Welding standard:ASTM A 252-1998 or ASTM A 714-1999


    7. Drill:Drill the hole at the right location as requested in the drawing.


    8. Calibration:check the straightness and diameter to make sure it meet all the requirement .


    9. Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized


    10. Galvanization :All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
    Galvanization standard:IS2629-1985 ,BS729-1971


    11. Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.


    12. Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .


    13. Packages: Our poles as normal cover by sea /road -worthy wooden packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data



    Our Services:
    1). Reply within 24 Working Hours
    2). Factory Direct Sale
    3). More than 15 Years Design & Manufacture Experience
    4). Capable to Handle Volume Orders
    5). High-Quality and Low-Price Products
    6). Provide Professional Design by Our Experienced R&D Engineers
    7). Rich Exporting Experience
    8). ODM, OEM Acceptable
    9). Technical Support by E-mail
    10). Calling service

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.

    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

    Telphone: +86 510 878 441 56

    Fax: +86 510 878 435 28

    Trade manager ID: cnhgsteelpole

    Skype: tangjia870124

    Company youtube link: https://youtu.be/C9sHcnm3RKI


    Please feel free to contact us!
