    Power Transmission Line 220KV Steel Tubular Tower Pole

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Power Transmission Line 220KV Steel Tubular Tower Pole

    Steel Transmission Poles Electrical Steel Tubular Tower Pole For Power Transmission Line

    Product Description:


    Products
    • Steel Transmission Poles Electrical Steel Tubular Tower Pole For Power Transmission Line

    Application
    • Electrical Power Transformer Substation

    Standrad
    • NEA Standard

    Painting
    • According to clients' request

    Shape
    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Galvanization
    • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
    Joint
    • Joint with flange mode.

    Product Advantages:

    The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.

    Product process:

    1.Raw materialtest :When purchasing the raw material(steel plate ),on sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.
    Material standard :ASTM GR65
    2.Cuting :Cuting the raw material that have meet all the standard required into different length and width .

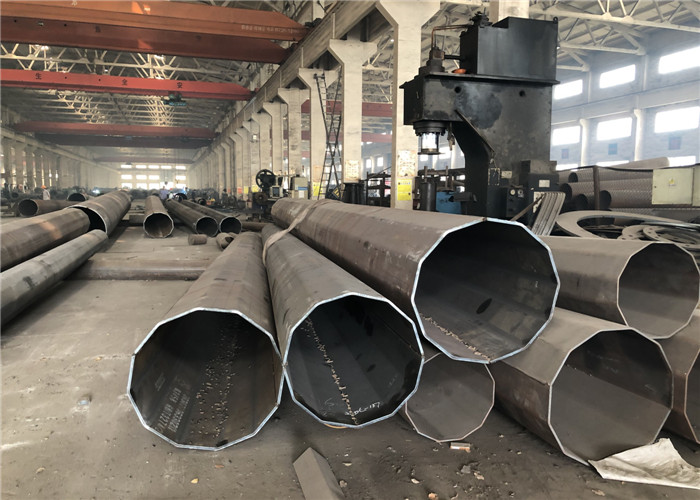

    3.Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .
    4.Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.
    5.Dimension verify :Afer welding ,check the diameter ,length according to the drawing .
    6.Flange:Weld the flange into the main pole
    Welding standard:ASTM A 252-1998 or ASTM A 714-1999
    7.Drill:Drill the hole at the right location as requested in the drawing.
    8.Calibration:check the straightness and diameter to make sure it meet all the requirement .
    9.Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized
    10.Galvanization :All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
    Galvanization standard:IS2629-1985 ,BS729-1971
    11.Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.
    12.Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .
    13.Packages: Our poles as normal cover by sea /road -worthy wooden packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data


    Product Show:

    Steel Pole of National Electrification Administration (Philippines)
    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
    Height
    (ft)
    Thickness
    (mm)
    Top diameter
    (mm)
    Butt diameter
    (mm)
    Design Load
    (kgf)
    Yield Stress
    (MPa)
    Zinc Coating
    (micron)
    25
    2.5
    120
    152
    300
    345
    86
    30
    3.0
    127
    226
    500
    345
    86
    35
    3.0
    127
    248
    500
    345
    86
    40
    3.0
    127
    317
    500
    345
    86
    45
    4.0
    127
    328
    750
    345
    86
