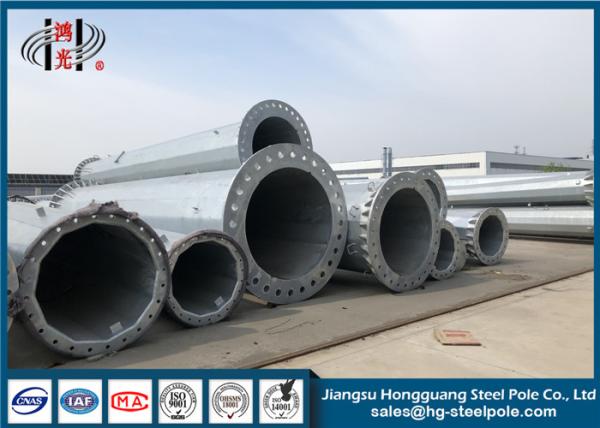

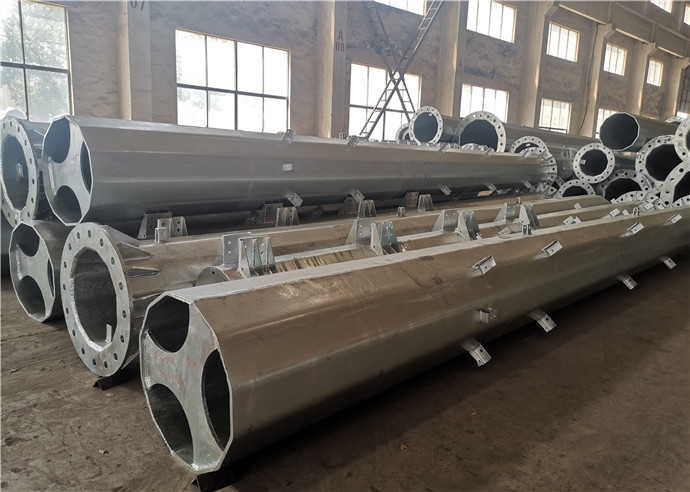

    Polygonal Tapered Hot Dip Galvanized Steel Pole With Anchor Bolt Q235 Q345

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Polygonal Tapered Hot Dip Galvanized Steel Pole With Anchor Bolt Q235 Q345

    Polygonal Tapered Hot Dip Galvanized Steel Pole with Anchor Bolt Q235 Q345

    Product Description:



    1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

    2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.

    3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.

    4) Pole Height: Transmission pole ≥ 15M

    5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

    6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)


    The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    Product Specification:

    Products
    • Polygonal Tapered Hot Dip Galvanized Steel Pole with Anchor Bolt Q235 Q345
    Application
    • Electrical Power Transformer Substation
    Voltage Grade
    • 10KV
    Production Process
    • Raw material test

    • Cutting

    • Bending

    • Welding (longitudinal )

    • Dimension verify

    • Flange welding

    • Hole drilling

    • Calibration

    • Deburr

    • Galvanization or powder coating or Bituminous painting

    • Recalibration

    • Packages

    Welding
    • Welding of galvanized steel power pole complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • Internal and external welding makes the galvanized steel power pole more beautiful in shape

    Base plate

    • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Product Advantages:

    A. Management team: We have a professional design team to provide services for customers. Provide design drawings.
    B. ISO 9001:2008 certificate provided .
    C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.

    Polygonal Tapered Hot Dip Galvanized Steel Pole With Anchor Bolt Q235 Q345

    Inquiry Information:



    Our compnay could design the practical steel electrical power poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :
    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.
