    NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345

    NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345

    Product Description:

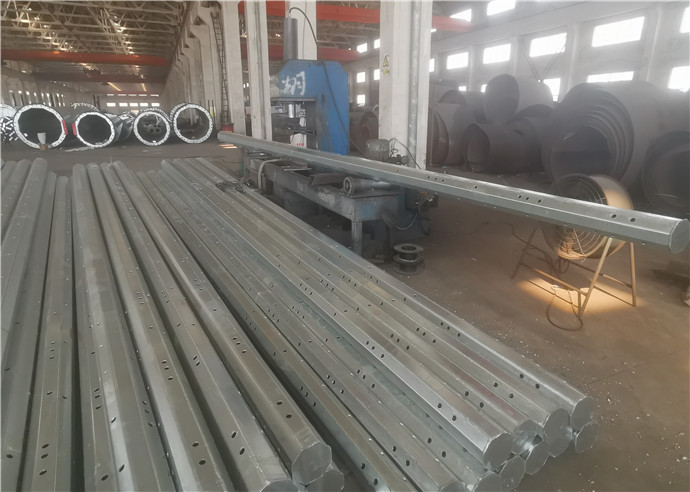

    The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.


    Product Specification:


    Products
    • NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345
    Application
    • Electrical Power Transformer Substation
    Voltage Grade
    • 11-220KV
    Once Forming
    • 11.9m Once forming without joint
    Thickness
    • 3.0mm
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods

    Production Process

    • Raw material test → Cutting →Molding or bending →Welding
      (longitudinal )→Dimension verify →Flange welding →Hole drilling→Calibration→ Deburr →Galvanization or powder coating ,painting→Recalibration →Thread →Packages

    Shape

    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Pole Accessories:


    1. Pole Shaft
    2. Top Cap
    3. Base Plate
    4. Butt Strip Plate
    5. CrossArm
    6. Anchor Bolts
    7. Grounding Nut & Bolts
    8. Name Plate
    9. Climbing Rungs
    10. Template
    11. Bituminous Painting if needed


    NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345

    Inquiry Information:



    Our compnay could design the practical steel electrical power poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :
    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.

    Packaging&Shipping:


    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

    * Covered by Plastic Wrap or Mat or according to client's requests.

    * The Loading Pcs of Each Container could be calculated according to client's specification and data.
