    Steel Conical Hot Dip Galvanized Electrical Power Pole With Anchor Bolt Q345

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Steel Conical Hot Dip Galvanized Electrical Power Pole With Anchor Bolt Q345

    Steel Conical Hot Dip Galvanized Electrical Power Pole with Anchor Bolt Q345

    Product Description:



    1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

    2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.

    3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.

    4) Pole Height: Transmission pole ≥ 15M

    5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

    6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)

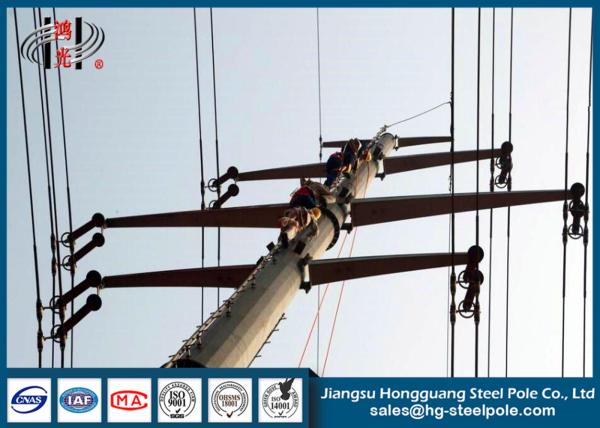

    The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    Manufacturing:


    Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.


    Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.


    After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

    Product Specification:

    Products
    • Steel Conical Hot Dip Galvanized Electrical Power Pole with Anchor Bolt Q345
    Application
    • Electrical Power Transformer Substation
    Voltage Grade
    • 10KV
    Once Forming
    • 16m Once forming without joint
    Production Process
    • Raw material test

    • Cutting

    • Bending

    • Welding (longitudinal )

    • Dimension verify

    • Flange welding

    • Hole drilling

    • Calibration

    • Deburr

    • Galvanization or powder coating or Bituminous painting

    • Recalibration

    • Packages

    Thickness
    • 2.3-18mm
    Welding
    • Welding of galvanized steel power pole complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • Internal and external welding makes the galvanized steel power pole more beautiful in shape
    Joint
    • Joint with insert mode, flange mode.

    Base plate

    • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Steel Conical Hot Dip Galvanized Electrical Power Pole With Anchor Bolt Q345

    Engineering and Design Management:

    “Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.

    Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.
