    Q345 Overlap Type Conical Tapered Pole With Climbing Ladder Waterproof

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Q345 Overlap Type Conical Tapered Pole With Climbing Ladder Waterproof

    Q345 Overlap Type Steel Electric Pole Conical Tapered Pole with Climbing Ladder

    Product Description:

    The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.


    Product Specification:

    Products
    • Q345 Overlap Type Steel Electric Pole Conical Tapered Pole with Climbing Ladder
    Application
    • Electrical Power Transformer Substation
    Voltage Grade
    • 11KV-220KV
    Once Forming
    • 16m Once forming without joint
    Advantages
    • Short Construction Cycle

    • Low Overall Cost

    • ODM, OEM Acceptable

    • Technical Support by E-mail

    • Provide Professional Design by Our Experienced R&D Engineers

    • Rich Exporting Experience

    • Weather Resistance

    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Joint
    • Joint with insert mode, flange mode.

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.

    Production Process:

    • Raw material test

    • Cutting

    • Bending

    • Welding (longitudinal )

    • Dimension verify

    • Flange welding

    • Hole drilling

    • Calibration

    • Deburr

    • Galvanization or powder coating or Bituminous painting

    • Recalibration

    • Packages

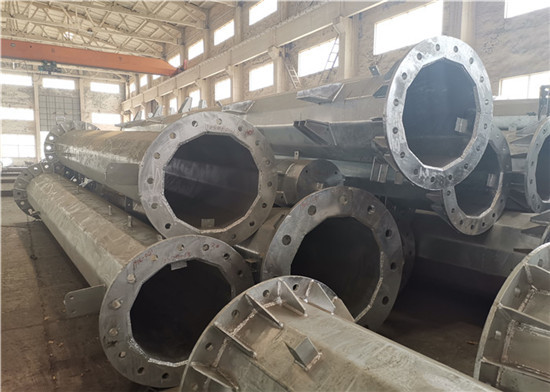

    Q345 Overlap Type Conical Tapered Pole With Climbing Ladder Waterproof

    Manufacturing:

    Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.


    Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

    Terms and Conditions:

    1. Price Term: EXW, FOB, CFR or CIF.

    The price includes pole shaft, base plate, crossarm and anchor bolt.
    Shipping seaport: Shanghai Seaport.
    Please provide drawings if you have so that we can calculate the accurate price for you.
    We also provide design according to your requests, if you don't have drawings.
    2. MOQ: One 40FT Container.

    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

    4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.

    5. Package: Normally wraped by plastical bags or burlap cloth at the top and bottom,or according to clients requirement.

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.
    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
    Telphone: +86 510 878 441 56
    Fax: +86 510 878 435 28
    Trade manager ID: cnhgsteelpole
    Skype: tangjia870124

    Company youtube link: https://youtu.be/C9sHcnm3RKI

    Please feel free to contact us!
