    OEM Steel Transmission Poles For Power Transmission And Distribution Line

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    OEM Steel Transmission Poles For Power Transmission And Distribution Line

    Steel Transmission Poles Electrical Post Steel Pole for Power Transmission and Distribution Line

    Product Description:

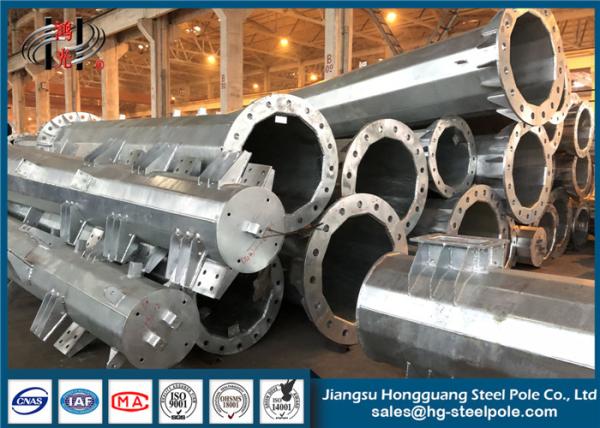

    The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    Product Specification:

    Products
    • Steel Transmission Poles Electrical Post Steel Pole for Power Transmission and Distribution Line
    Application
    • Electrical Power Transformer Substation
    Voltage Grade
    • 11-220KV
    Once Forming
    • 16m Once forming without joint
    Connection structure
    • Overlap / flange connection
    Thickness
    • 2.3-18mm
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Joint
    • Joint with insert mode, flange mode.

    Base plate

    • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Production Process

    • Raw material test → Cutting →Molding or bending →Welding
      (longitudinal )→Dimension verify →Flange welding →Hole drilling→Calibration→ Deburr →Galvanization or powder coating ,painting→Recalibration →Thread →Packages

    Product Advantages:

    A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

    B. ISO 9001:2008 certificate provided .

    C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.

    Application Scope:

    Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

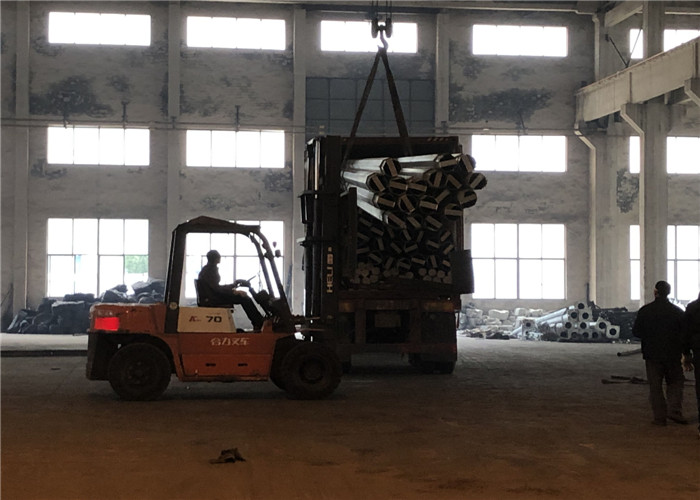

    Packaging&Shipping:

    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

    * Covered by Plastic Wrap or Mat or according to client's requests.

    * The Loading Pcs of Each Container could be calculated according to client's specification and data.

    Engineering and Design Management:

    “Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.


    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.


    Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.
    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
    Telphone: +86 510 878 441 56
    Fax: +86 510 878 435 28
    Trade manager ID: cnhgsteelpole
    Skype: tangjia870124

    Company youtube link: https://youtu.be/C9sHcnm3RKI

    Please feel free to contact us!
