    Stainless Steel Lamp Pole Galvanized Pole Overlap / Flange Connection

    Overlap/Flange Connection Stainless Steel Lamp Pole Street Light Poles Galvanized Pole

    Product Description:

    Material

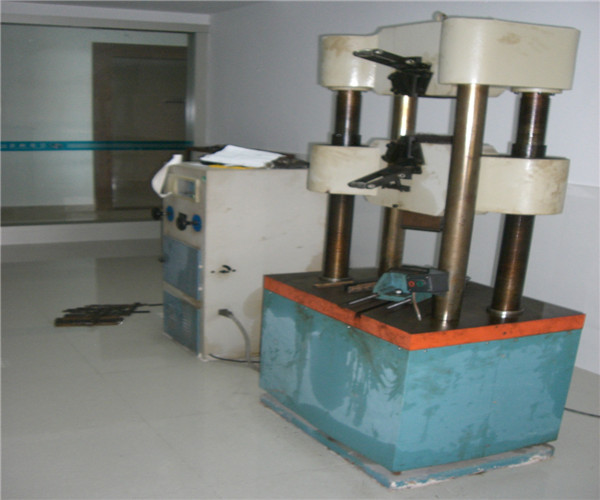

    Normally Q235 high quality mild steel sheet. Silicon less than 2%. We have raw material checked in our lab test room after purchasing the steel sheet. We control the quality at the first beginning.
    Shape of Pole
    Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal
    Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
    Brackets
    Double brackets are in the shape and dimension as per customer's requirement
    Welding
    Welding confirms with international welding standard of CWB. No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
    Base plate mounted
    Base plate is square in shape with slotted holes for anchor bolts and dimension as per customer's requirement
    Ground mounted
    The length buried underground as per customer's requirement
    Galvanizing
    Hot dip galvanization with thickness of 80-100μm average. Inside and outside surface anti-corrosion treatment by hot dipping acid. Zinc coating is more than 85 um thick, which is in accord with GB/T13912-92 standard.

    Product Specification:

    Products
    • Overlap/Flange Connection Stainless Steel Lamp Pole Street Light Poles Galvanized Pole
    Application
    • Street / road / highway / commercial areas lighting, etc
    Material
    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material
    Production Process
    • Raw material test → Cutting →Molding or bending →Welding
      (longitudinal )→Dimension verify →Flange welding →Hole drilling→Calibration→ Deburr →Galvanization or powder coating ,painting→Recalibration →Thread →Packages
    Welding
    • Welding complies with AWS D1.1 standard.
      CO2 welding or submerged arc auto methods
      No fissure, scar, overlap, layer or other defects
      Internal and external welding makes the pole more beautiful in shape
      If customers need any other requirements of welding, we also can make adjustment ad your request
    Life Period
    • More than 25 years, it is according to installing environment

    Product Advantages:

    1). Short Construction Cycle
    2). Low Overall Cost
    3). Easy Installation and Maintenance
    4). Weather Resistance
    5). Anti-corrosion
    6). More than 15 Years Design & Manufacture Experience
    7). Capable to Handle Volume Orders
    8). Provide Professional Design by Our Experienced R&D Engineers
    9). Rich Exporting Experience
    10). ODM, OEM Acceptable
    11). Technical Support by E-mail

    Application Scope:

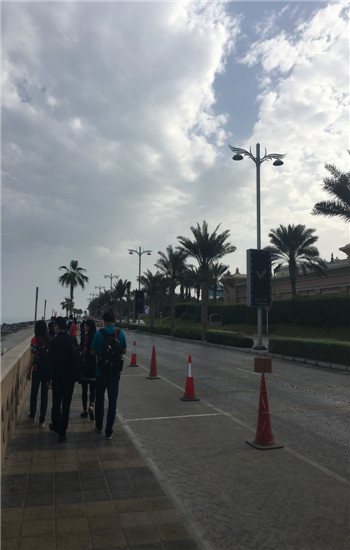

    Street light poles are widely used​ Street / Road Lighting, Highway Lighting, Commercial Areas Lighting, Seaport Lighting, AirPort Lighting, etc

    Packaging&Shipping:

    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

    Engineering and Design Management:

    “Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.


    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.
