    Dodecagonal Octagonal Steel Conical Power Transmission Poles 25-40FT Direct Buried

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Dodecagonal Octagonal Steel Conical Power Transmission Poles 25-40FT Direct Buried

    Dodecagonal Octagonal Steel Conical 25-40FT Power Transmission Poles Direct Buried

    Product Inquiry Information:


    Our compnay could design the practical steel electrical power poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :
    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.

    Product Description:


    National Electrification Administration (Philippines)
    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT


    Height(ft)

    Thickness(mm)

    Butt Diameter(mm)

    Top Diameter(mm)

    Design Load(kg)

    Yield Stress(MPA)

    Zinc Coating(microns)

    25

    2.5

    152

    120

    300

    345

    86

    30

    3.0

    226

    127

    500

    345

    86

    35

    3.0

    248

    127

    500

    345

    86

    40

    3.0

    317

    127

    500

    345

    86

    453.032812750034586

    Material:
    we just only choose qualified & famous steel manufacturer's products to make sure our product's quality. Any material was found the defects,then all the rest materials which purchased together with it will be refused and forbidden to be receipt by the warehouse.


    Welding:
    we welding the steel poles with auto submerged-arc welding and auto welding with perfect welding line and good quality,we strickly control the test of the welding by the flaw testing with ultrasonic crack detection to make sure there is no crack,undercut,slag inclusion,hole vent for the welding.



    Product Advantage


    • Short Construction Cycle
    • Less Land Occupation
    • Low Overall Cost
    • Easy Installation and Maintenance
    • Weather Resistance
    • Anti-corrosion
    • ODM & OEM are available
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers

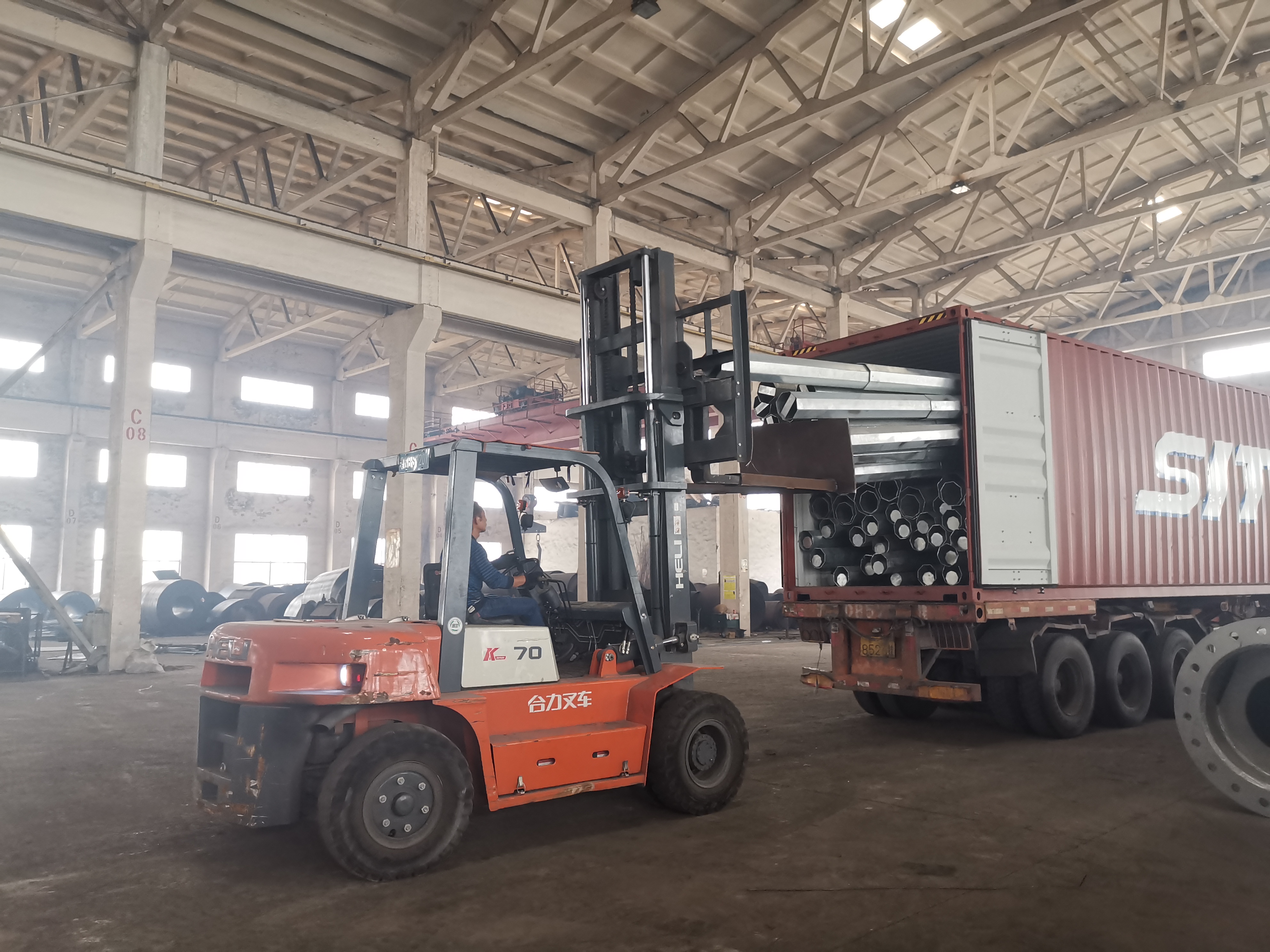

    Packaging&Shipping:


    Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required.


    Contact Us:


    Jiangsu Hongguang Steel Pole Co., Ltd.

    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

    Telphone: +86 510 878 441 56

    Fax: +86 510 878 435 28

    Trade manager ID: cnhgsteelpole

    Skype: tangjia870124


    Please feel free to contact us!
