    Polygonal Galvanized Steel Pole For Distribution With Min Yield Strength 345 Mpa

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Polygonal Galvanized Steel Pole For Distribution With Min Yield Strength 345 Mpa

    Polygonal Galvanized Steel Pole for Distribution with Min Yield Strength 345 Mpa

    Product Description:


    National Electrification Administration (Philippines)
    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT


    Height(ft)

    Thickness(mm)

    Butt Diameter(mm)

    Top Diameter(mm)

    Design Load(kg)

    Yield Stress(MPA)

    Zinc Coating(microns)

    25

    2.5

    152

    120

    300

    345

    86

    30

    3.0

    226

    127

    500

    345

    86

    35

    3.0

    248

    127

    500

    345

    86

    40

    3.0

    317

    127

    500

    345

    86

    453.032812750034586

    Welding:
    we welding the steel poles with auto submerged-arc welding and auto welding with perfect welding line and good quality,we strickly control the test of the welding by the flaw testing with ultrasonic crack detection to make sure there is no crack,undercut,slag inclusion,hole vent for the welding.


    Hot dip galvanization:
    All our products must be hot dip galvanized which can keep the steel poles without rust more than 30 years.Our standard for a good hot dip galvanization steel pole is same color of the zinc coating without dent mark,no exposed iron and hang of zinc of defect. Normally speaking,the thickness of the zinc coating is up to the materials thickness.The thicker the material is, the thicker the zinc coating will be.


    Quality Control Management:


    Jiangsu Hongguang Steel Pole Co., Ltd has passed the ISO 9001 quality management system. And we have our own Lab to do the chemical and mechanical test. For instance, we test the raw material component content and the strength when we purchase the raw material. And if the material does not pass the test, we’ll not use it to produce our steel poles. Therefore, customers can rest assured that we always manufacture the good quality poles. Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.


    Packaging&Shipping:

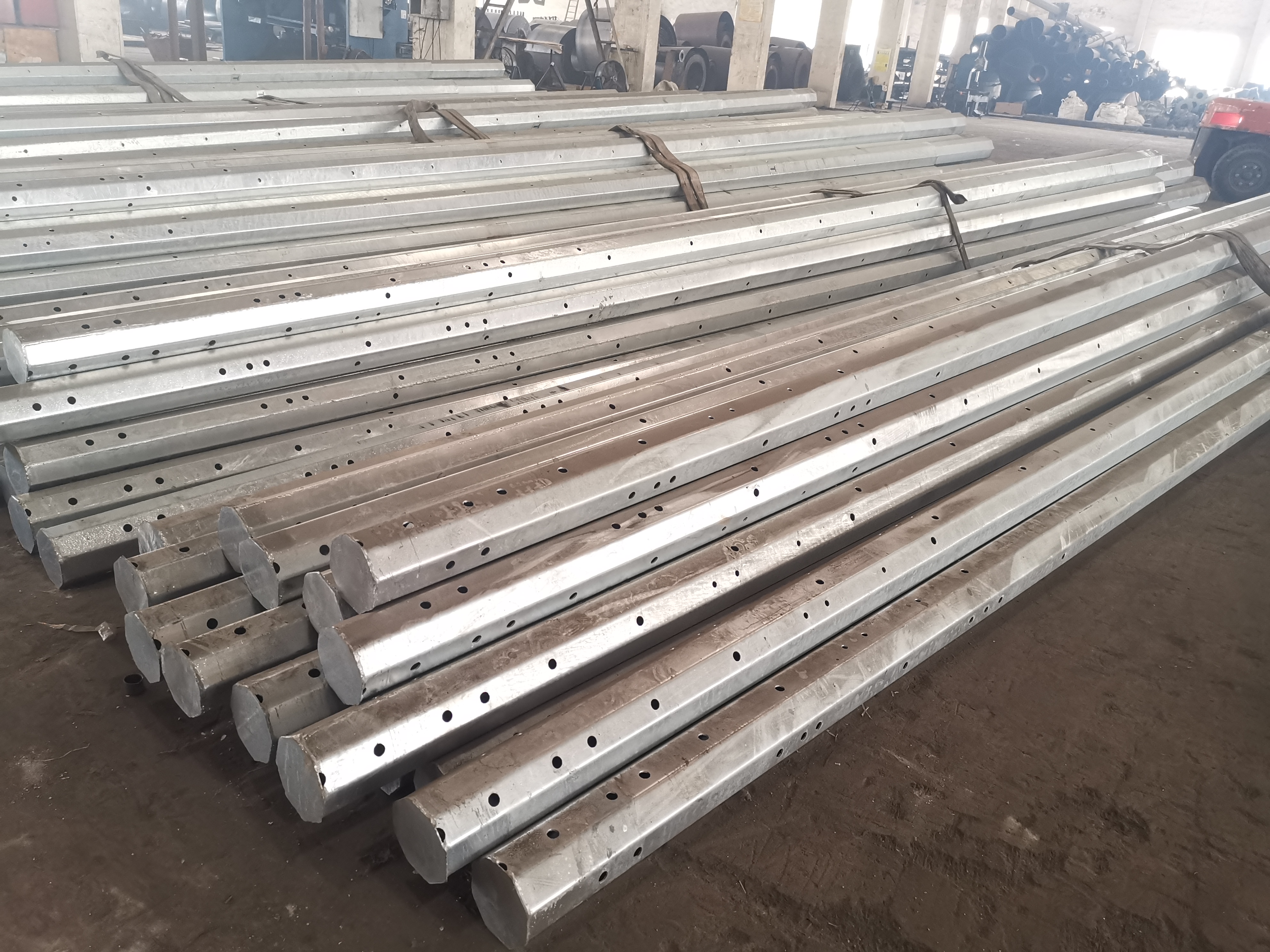

    Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required.



    Contact Us:


    Jiangsu Hongguang Steel Pole Co., Ltd.

    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

    Telphone: +86 510 878 441 56

    Fax: +86 510 878 435 28

    Trade manager ID: cnhgsteelpole

    Skype: tangjia870124


    Please feel free to contact us!
