    Anti - Corrosive NEA Standard Steel Transmission Pole 30ft Q345 500kg Design Load

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Anti - Corrosive NEA Standard Steel Transmission Pole 30ft Q345 500kg Design Load

    Anti-corrosive NEA Standard 35ft Power Transmission Poles Q345 500kg Design Load

    Product Description:


    Products
    • Anti-corrosive NEA Standard 35ft Power Transmission Poles Q345 500kg Design Load

    Application
    • Electrical Power transmission and distribution line

    Standrad
    • Philippines NEA Standard

    Shape
    • Conical, Octagonal

    Material
    • Applied to the material of general-purpose steel GB/T1591-2008, Q345 used in China.

      Q345 equipment to ASTM GR50. Min Yield Stress 345 Mpa.


    Wall thickness
    • 3.0 mm

    Type
    • Direct Buried

    Delivery Time
    • 2 weeks per container after PO/drawing/prepayment confirmed

    Life Period
    • More than 25 years, it is according to installing environment

    Packaging Details
    • Covered by Plastic Wrap or Mat or according to client's requests.
    • The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Advantages
    • Low Overall Cost
    • Easy Installation and Maintenance
    • Anti-corrosion
    • ODM & OEM are available
    • Provide Professional Design by Our Experienced R&D Engineers

    • Capable to Handle Volume Orders
    Export Foreign Country
    • America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,etc

    Product Detial:


    National Electrification Administration (Philippines)
    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT


    Height(ft)

    Thickness(mm)

    Butt Diameter(mm)

    Top Diameter(mm)

    Design Load(kg)

    Yield Stress(MPA)

    Zinc Coating(microns)

    25

    2.5

    152

    120

    300

    345

    86

    30

    3.0

    226

    127

    500

    345

    86

    35

    3.0

    248

    127

    500

    345

    86

    40

    3.0

    317

    127

    500

    345

    86


    1.Top diameter:127mm

    2.Bottom diameter:226mm

    3.Thickness:3.0mm

    4.Material:yield strength not less than 345mpa(GB/T1591-2008standard)

    5.Management team : ISO management ,We are award ISO 9001:2008 certificate . .
    QC inspection :It is our company policy that all the finish product should be inspected by our specialized QC in every manufacture steps and before every shipment

    6.Welding :complies with AWS D1.1 standard.CO2 welding or submerged arc auto methods.No fissure, scar, overlap, layer or other defects

    Internal and external welding makes the pole more beautiful in shape

    7.Design load: 500kg


    Anti - Corrosive NEA Standard Steel Transmission Pole 30ft Q345 500kg Design Load

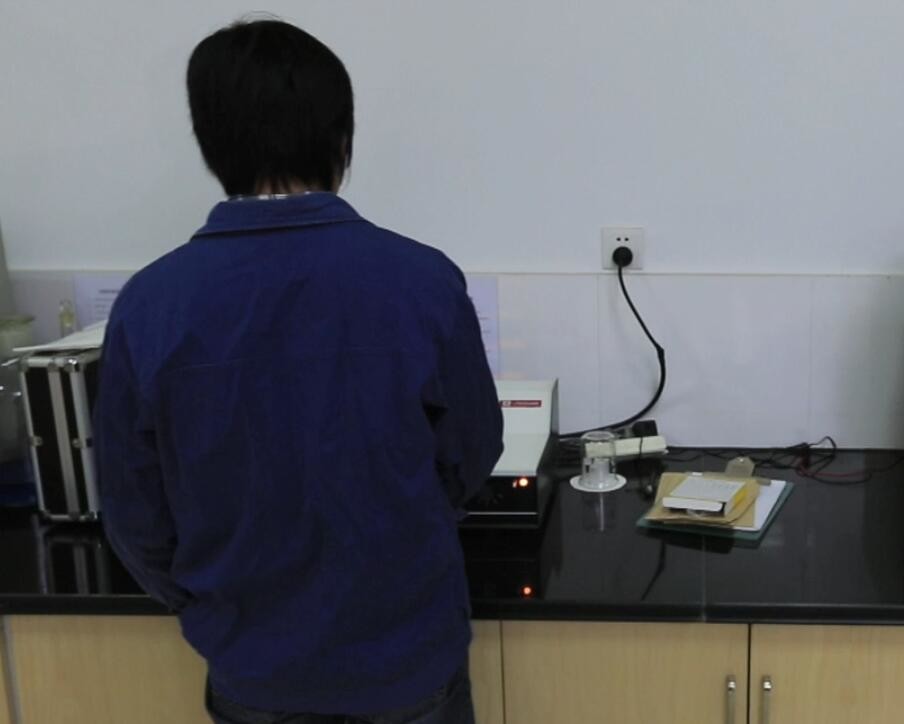

    Material Test:


    Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.

    • All of our material are purchased from famous mill factory to assure the quality.
    • A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material.
    • Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

    Anti - Corrosive NEA Standard Steel Transmission Pole 30ft Q345 500kg Design Load


    Packaging&Shipping:


    Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required.


    Our Service


    • Reply within 24 Working Hours
    • Factory Direct Sale
    • More than 15 Years Design & Manufacture Experience
    • Capable to Handle Volume Orders
    • High-Quality and Low-Price Product
    • Provide Professional Design by Our Experienced R&D Engineers
    • Rich Exporting Experience
    • ODM, OEM Acceptable
    • Technical Support by E-mail
    • Calling service

    Contact Us:


    Jiangsu Hongguang Steel Pole Co., Ltd.

    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

    Telphone: +86 510 878 441 56

    Fax: +86 510 878 435 28

    Trade manager ID: cnhgsteelpole

    Skype: tangjia870124


    Please feel free to contact us!
