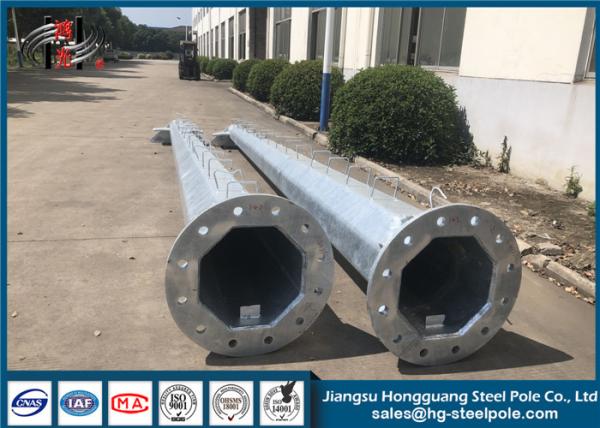

    Galvanized Polygon Steel Electric Pole Steel Tubular Pole For Power Transmission

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Galvanized Polygon Steel Electric Pole Steel Tubular Pole For Power Transmission


    Galvanized Polygon Steel Electric Pole Steel Tubular Pole For Power Transmission


    Product Description:

    The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.


    Product Specification:


    Products

    • Galvanized Polygon Steel Electric Pole Steel Tubular Pole For Power Transmission

    Application

    • Transmission line

    Voltage Grade

    • 10KV ~ 500KV

    Galvanization

    • Hot dip galvanization

    Shape

    • Round / polygonal / Conical / Tubular

    Welding

    • According to AWS D 1.1, CO2 welding or submerged arc auto methods

    • No fissure, scar, overlap, layer or other defects

    • Internal and external welding makes the pole more beautiful in shape

    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Joint

    • Joint with insert mode

    Base plate


    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.


    Product Advantages:


    The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.


    NEA Standard Specification:

    Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT


    Height

    (ft)

    Thickness

    (mm)

    Butt Diameter

    (mm)

    Tip Diameter

    (mm)

    Design Load

    (kg)

    Yield Stress

    (MPA)

    Zinc Coating

    (microns)

    25

    2.5

    152

    120

    300

    345

    86

    30

    3.0

    226

    127

    500

    345

    86

    35

    3.0

    248

    127

    500

    345

    86

    40

    3.0

    317

    127

    500

    345

    86

    45

    3.0

    328

    127

    500

    345

    86


    Packaging&Shipping:

    Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.



    Engineering and Design Management:

    “Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.


    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.


    Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.


    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.
    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
    Telphone: +86 510 878 441 56
    Fax: +86 510 878 435 28
    Trade manager ID: cnhgsteelpole
    Skype: tangjia870124

    Please feel free to contact us!
