    Electric Overhead Transmission Line Pole Double Circuits 110KV In Dodecagonal

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Electric Overhead Transmission Line Pole Double Circuits 110KV In Dodecagonal

    Double Circuits 110KV Electric overhead Steel Power Transmission Pole in Dodecagonal

    Product Description:


    Products

    • Double Circuits 110KV Electric overhead Steel Power Transmission Pole in Dodecagonal

    Application

    • Electrical Power transmission and distribution line

    Voltage Grade

    • 110KV

    Shape

    • Conical, Dodecagonal,Tubular, Tapered

    Material

    • Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China.

      Q235 equipment to SS400. Min Yield Stress 235 Mpa.

      Q345 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.

      Others material steel Q420, Q460 provided according to customers' request.

    Wall thickness

    • 2.5 mm to 30 mm

    Once Forming

    • 16m Once forming without joint

    Welding

    • Welding of substation structure complies with AWS D1.1 standard.

    • CO2 welding or submerged arc auto methods

    • No fissure, scar, overlap, layer or other defects

    • Internal and external welding makes structure more beautiful in shape

    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Product Procession Line

    • Raw material test → Cutting →Molding or bending →Welding
      (longitudinal )→Dimension verify →Flange welding →Hole drilling→Calibration→ Deburr →Galvanization or powder coating, painting→Recalibration →Thread →Packages

    Galvanization

    • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Life Period

    • More than 25 years, it is according to installing environment

    Advantages

    • Short Construction Cycle

    • Low Overall Cost

    • Weather Resistance

    • More than 15 Years Design & Manufacture Experience

    • Provide Professional Design by Our Experienced R&D Engineers

    • ODM, OEM Acceptable

    • Technical Support by E-mail

    Electric Overhead Transmission Line Pole Double Circuits 110KV In Dodecagonal

    Product Detail:

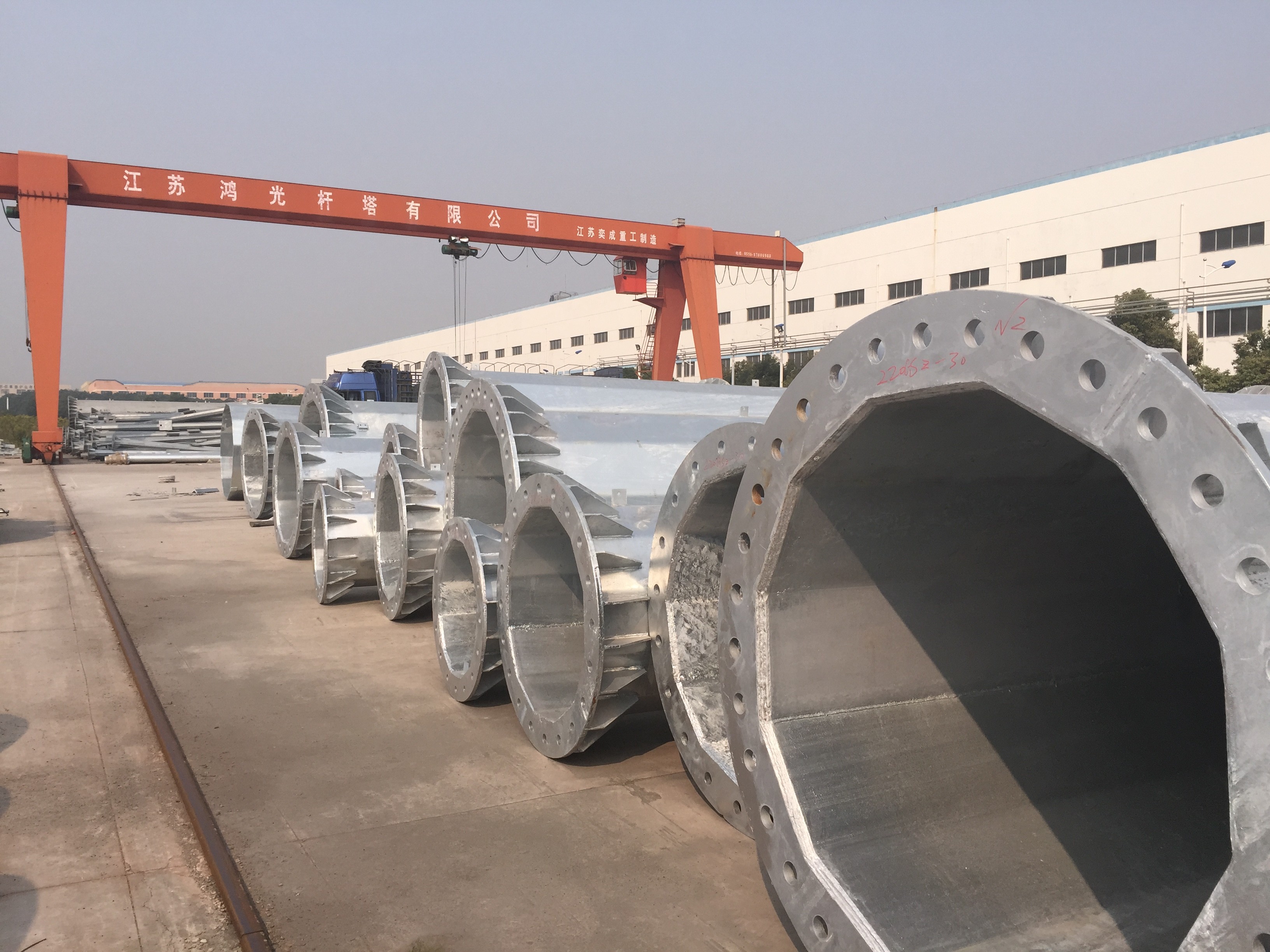

    Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pressure and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site. As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost. In order to provide better service for customers, we promise to reply within 24 Working Hours and technical support by E-mail and calling service.

    Material Test:


    1. All of our materials are purchased from famous mill factory to assure the quality with mill certificate issued by the mill factory before unloading the material in our factory;


    2. Before putting into production, all the materials must pass the chemical and physical analysis to make sure that they have met the requested strength and components.

    Packaging&Shipping:


    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.


    Electric Overhead Transmission Line Pole Double Circuits 110KV In Dodecagonal


    Company Information:


    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.


    Electric Overhead Transmission Line Pole Double Circuits 110KV In Dodecagonal


    Contact Us:


    Jiangsu Hongguang Steel Pole Co., Ltd.

    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

    Telphone: +86 510 878 441 56

    Fax: +86 510 878 435 28

    Trade manager ID: cnhgsteelpole

    Skype: tangjia870124


    Please feel free to contact us!
