    Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised

    Bangladesh Q355 12m 450 Dan Hot Dip Galvanized Power Transmission Poles


    Product Description:


    Products

    • Bangladesh Q355 12m 450 Dan Hot Dip Galvanized Power Transmission Poles

    Application

    • Electrical Power Transmission/Distribution Line Project

    Voltage Grade

    • 10-110KV

    Shape

    • Octagonal conical (Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine)

    Material

    • Hot Roll Steel Q355

    Wall thickness

    • 4.0mm

    Welding

    • Welding of substation structure complies with AWS D1.1 standard.

    • CO2 welding or submerged arc auto methods

    Joint

    • Joint with flange mode.

    Galvanization

    • Hot dip galvanization of substation structure is in accordance with American standard ASTM A123.

    Painting

    • Bitumen Paint

    Life Period

    • More than 25 years, it is according to installing environment

    Advantages

    • Short Construction Cycle

    • Low Overall Cost

    • Anti-corrosion

    • More than 15 Years Design & Manufacture Experience

    • Rich Exporting Experience

    • Technical Support by E-mail

    Export Country
    • Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo

    Product Description:


    Transmission pole includes suspension pole, tensile pole, strain pole, angle pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel power transmission poles are overlaped insert type and direct burried. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years.In addition, our company have become a qualified supplier of SGCC and NGCP. Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost.


    Our round tapered poles are available in mounting height from 3 to 14m(one piece joint),two moulds are available with us: one taper is 11/‰,the other 14/‰,poles of taper 10-15‰ can be made. The poles can be used for post top or bracket arm applications. Integral bracket arm arrangements are also available.

    Product Details:

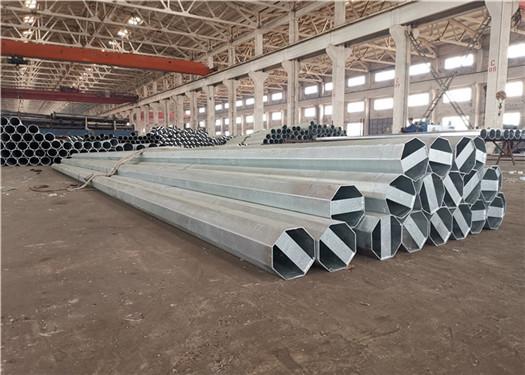

    Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised


    Standard Accessory:


    - Top plate
    - Base plate
    - Bottom strip
    - Standard hole
    - Climbing rung
    - Anchor bolt
    - Bitumen protection
    - Painted marking
    - Removable ladder


    Production Process Flow Chat:


    Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.

    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

    Telphone: +86 510 878 441 56

    Fax: +86 510 878 435 28

    Trade manager ID: cnhgsteelpole

    Skype: tangjia870124


    Please feel free to contact us!
