    90FT Tapered Steel Tubular Pole With Bitumen Painted , 235-460Mpa Tensile Strength

    90FT Tapered Steel Tubular Pole with Bitumen Painted Anti-corrosive Q345

    Product Description:

    In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system since hot dip galvanized steel tubular poles play an important role in electrical power transmission and distribution industry. Our steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station,

    Our compnay could design the practical steel tubular poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :


    - Steel pole height
    - Dimension of the flange
    - Position and dimension of the service door
    - Cross arm type and length,the position to install in the steel pole
    - The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
    - Wind speed
    - Destination port
    - Other.


    90FT Tapered Steel Tubular Pole With Bitumen Painted , 235-460Mpa Tensile Strength

    Product Specification:

    Products
    • 90FT Tapered Steel Tubular Pole with Bitumen Painted Anti-corrosive Q345
    Production Process Flow Chat
    • Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 13.8KV
    Surface Coating
    • Hot Dip Galvanization and bitumen painting
    Capacity
    • 2000 MT per Month
    Ground mounted:
    • The length buried underground as per customer’s requirement.
    Surface treatment
    • Hot dip galvanized Following ASTM A 123,
      color polyester power or any other standard by client required
    Export Country
    • Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Vietnam, Costa Rica, Colombia, Jordan, Nigeria, etc
    Our Service
    • Rich Exporting Experience
    • Technical Support by E-mail
    • Calling service
    • Reply within 24 Working Hours
    • Factory Direct Sale
    • More than 15 Years Design & Manufacture Experience
    • High-Quality and Low-Price Products

    Product Advantages:


    1. We can supply the products base on client required drawing

    2. Matercials :Q345, Minimun yield strength:345MPA.

    3. Treating: Hot dip galvanized ,bitumen painting

    4. Packing: Plastic bulble wrap

    5. Length : within 11.9 meters once forming( single section)

    6. Thickness:3mm. 6mm, etc

    7. Shape: polygonal

    8. Easy install and maintenance.

    9.Weather Resistance

    10.Anti-corrosion

    11.ODM & OEM are available

    12.Capable to Handle Volume Orders

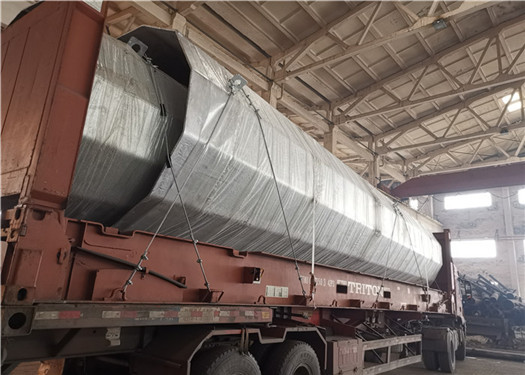

    Packaging&Shipping:

    Normally steel tubular poles are covered by Mat or straw bale at the top and bottom ,anyway we can also follow clients required , each 40HC or OT can load pieces according to calculation which bases onthe clients’ actual specification and data.

    90FT Tapered Steel Tubular Pole With Bitumen Painted , 235-460Mpa Tensile Strength

    Company Engineering and Design Management:

    Since the establishment, Jiangsu Hongguang Steel Pole Co., Ltd have put forward thousands of conical pole design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.


    90FT Tapered Steel Tubular Pole With Bitumen Painted , 235-460Mpa Tensile Strength

    Contact Us:

    Jiangsu Hongguang Steel Pole Co., Ltd.
    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
    Telphone: +86 510 878 441 56
    Fax: +86 510 878 435 28
    Trade manager ID: cnhgsteelpole
    Skype: tangjia870124

    Please feel free to contact us!
