    RAL Painted Conical High Mast Light Pole , Steel Electric Pole H25m Q235

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

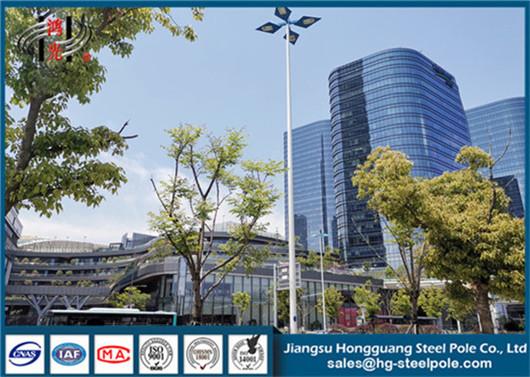

    RAL Painted Conical High Mast Light Pole , Steel Electric Pole H25m Q235


    RAL Painted Conical High Mast Light Pole , Steel Electric Pole H25m Q235

    Product Specification:

    Products
    • Hot Dip Galvanized RAL Painted Conical High Mast Light Pole H25m Q235
    Application
    • Seaport, AirPort, Parking Lot, Stadium, Garden, etc.
    Material
    • Q235, Minimum Yield Strength :235 MPa
    Shape
    • Conical, Round,Octagonal, Tubular, Tapered
    Wind design
    • 30m/s
    Wall thickness
    • 8mm
    Appearance Treatment
    • Hot-dip galvanized / Powder Coated / Painting
    Welding Technique
    • Automatic submerged arc welding

    Production Process

    Flow Chat

    • Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery
    Lamp power
    • 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz

    RAL Painted Conical High Mast Light Pole , Steel Electric Pole H25m Q235

    Product Description:

    We could design and produce different kinds of custom tapered and polygonal high mast light pole according to customers' requirements. All high mast light poles are hot dip galvanized and could be powder coated and painted as per customers’ requests which allows more than 25 years' life period.


    The high mast light pole have different types, we can install all the lights in one direction or install in a circle direction. Also, it can use the lifting system or fixed ladder, We can design it as your request.


    Product Welding:

    High mast light pole adopt CO2 welding or submerged arc auto methods which complies with AWS D1.1 standard. No fissure, scar, overlap, layer or other defects will be left after hot dip galvanization. In addition, our internal and external welding technique makes the pole more beautiful in shape. If customers need any other requirements of welding, we also can make adjustment ad your request.

    Packaging&Shipping:

    Usually high mast light pole is wrapped in plastic bags. If the customer has specific requirements, we will package according to the customer's requirements.


    Trade terms:


    1. Price Term: EXW, FOB, CIF. Our price includes pole shaft, base plate, cross arm and anchor Bolt. Shipping seaport: Shanghai Seaport.

    2. Minimum Order Quantity: 1 sets.

    3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.

    4. Package: Plastic paper .

    5. Parts Design Service Period: 20 years.
