    Q235 Q345 10 - 220KV Electrical Power Pole , Hot Dip Galvanized Transmission Pole

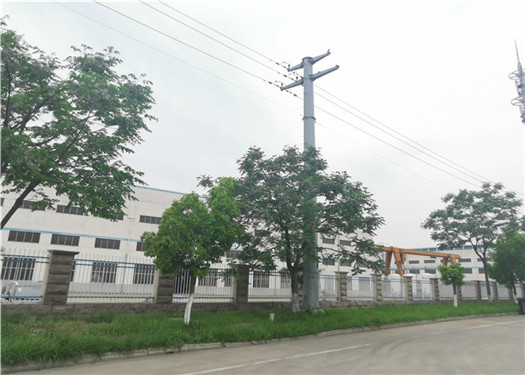

    Q235 Q345 10-220KV Hot Dip Galvanized Electrical Power Pole

    Product Description:

    The electrical power pole raw materials are mainly hot roll steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material. Hot dip galvanization technology could protect electrical power pole from corrosion, lightning, and weather as long an 50 years. As an alternative to the traditional wood and concrete poles, our electrical power pole could be untilize to bear conductors and electric distribution equipment, cables which are widely used in the power transmission industry.

    Q235 Q345 10 - 220KV Electrical Power Pole , Hot Dip Galvanized Transmission Pole

    Product Specification:

    Products
    • Q235 Q345 10-220KV Hot Dip Galvanized Electrical Power Pole
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 10KV ~ 220KV (10KV, 13.8KV, 33KV, 35KV,66KV,110KV, 220KV)
    Shape
    • Conical, Round, Polygonal, Tubular, Tapered
    Quality Standard
    • ISO9001-2008
    Wall thickness
    • 2~30mm
    Base Plate
    • Square/round/Polygon with slotted holes for anchor bolt .
    Life Period
    • More than 25 years, it is according to installing environment
    Surface treatment
    • Hot dip galvanized Following ASTM A 123,
      color polyester powder
    Certificates
    • ISO9001-2008 , AAA credit rating, etc

    Production Process Flow Chat:

    Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery


    Packaging&Shipping:

    Electrical power pole is normally wraped by plastical bags, or according to clients requirement.


    Q235 Q345 10 - 220KV Electrical Power Pole , Hot Dip Galvanized Transmission Pole

    JIANGSU HONGGUANG STEEL POLE CO., LTD.


    With over 20 Years of Experience/ Capable to Handle Volume Orders


    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) is located in Wuxi, east of China, near one of the largest sea port of China-Shanghai Port.JSHG'S products have been widely used in power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telecommunication Monopole Towers for the telecommunication industry; Traffic Poles & Camera Poles & Advertising Structures for transportation Industry and Advertising Industry.
