    Anti - Rorrosive Elecommunication Pole For Broadcasting Industry , Long Service

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : JSHG-TX
    Certification : XK11-001-00105X
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Anti - Rorrosive Elecommunication Pole For Broadcasting Industry , Long Service


    Anti - Rorrosive Elecommunication Pole For Broadcasting Industry , Long Service


    Specifications:


    Application

    • Telecommunication, broadcasting, Cell phone signal , etc
    Material
    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

    Shape

    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagon, etc)

    Wall thickness

    • 8~15mm

    Once Forming

    • 16m Once forming without joint

    Joint

    • Joint with insert mode, flange mode.

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Surface Treatment

    • Hot dip galvanization (GB/T 13912-2002 /ASTM A123 or AS/NZS 4680:2006)
    • Could be powder coated or painted according to clients' request

    Advantages

    • Cost-saving but Strong Practicability
    • Less Land Occupation
    • Easy Installation and Maintenance
    • Anti-corrosion
    • ODM & OEM are available

    Description:


    Telecommunication monopole tubular tower pole is the main carrier for communication signal launching and receiving. It is a sort of infrastructure construction for mobile transmission signal coverage.Our telecommunication monopole is manufactured by the most advanced production equipments including CNC plate production line, digital controlled drill (Max working aperture is φ80mm), CNC hydraulic bending machine which adopted LVD technology from Belgium and longitudinal welding machine from Lincoln Electric Company. The new model monopole tower has many advantages. It can be powder coated with different colors according to client’s requirement which not only beautify the environment but also prevent the pole from corrosion.

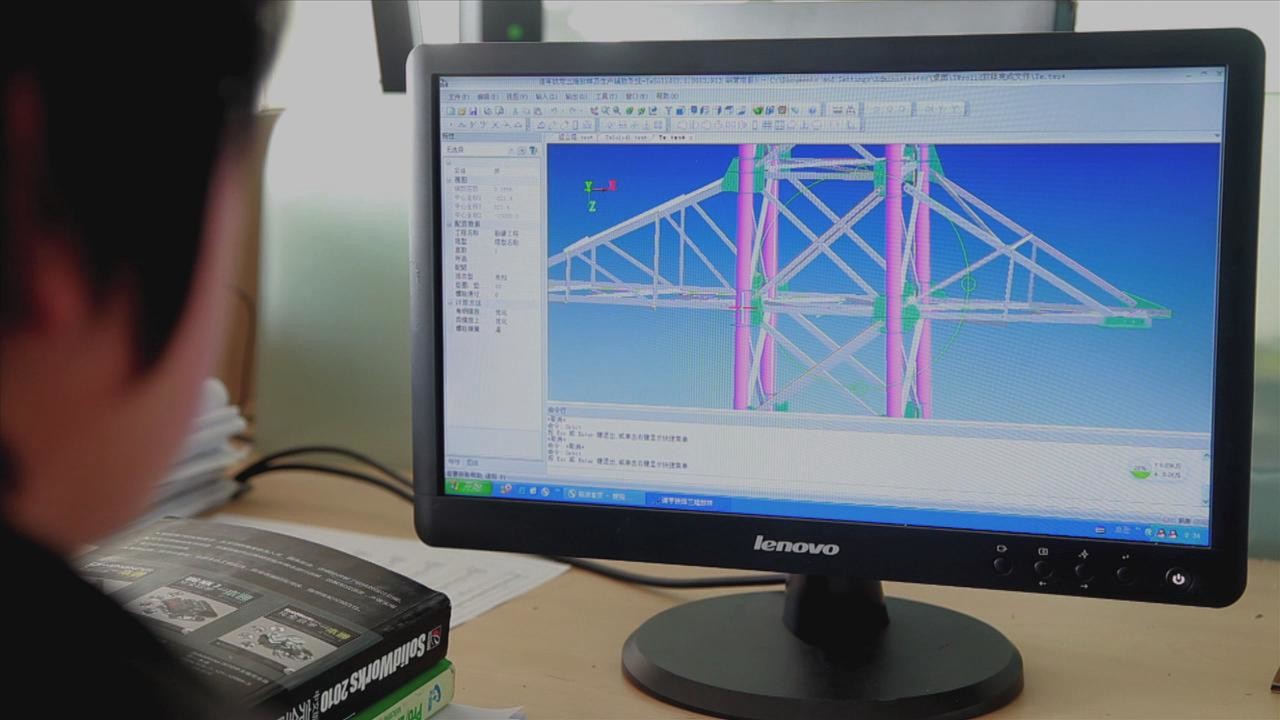

    Engineering and Design Management


    “Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.


    Anti - Rorrosive Elecommunication Pole For Broadcasting Industry , Long Service

    Terms and Conditions


    1. Price Term: FOB, EXW,CIFor CFR .

    • The price includes pole shaft, base plate, cross arm and anchor bolt.
    • Shipping seaport: Shanghai Seaport.
    • Please provide drawings if you have so that we can calculate the accurate price for you.
    • We also provide design according to your requests, if you don't have drawings.

    2. MOQ: One 40FT Container.


    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


    4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.


    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients requirement.


    15-60M Hot Dip Galvanized and powder coated Telecommunication Monopole Tower Pole for Telecommunication, Broadcasting, Cell Phone.pdf
