    Hot Dip Tapered Electric Steel Utility Tubular Pole For Mono Pole Tower

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-69KV-1
    Certification : ISO 9001
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Hot Dip Tapered Electric Steel Utility Tubular Pole For Mono Pole Tower

    Wholesale Hot Dip Galvanized Electric Steel Tubular Pole for Electrical Line


    Specifications:


    Products

    • Wholesale Hot Dip Galvanized Electric Steel Tubular Pole for Electrical Line

    Type

    • Suspension Pole , Tensile Pole , Strain Pole , Angle Pole , Dead-end Pole , etc

    Voltage Grade

    • 13.8KV
    Height
    • 25FT , 30FT , 35FT , 40FT , 45FT , 50FT , 55FT , 60FT , etc.

    Shape

    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Material

    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, S355,SS400 and others equivalent steel material

    Wall thickness

    • 2 ~ 6mm

    Once Forming

    • 16m Once forming without joint

    Welding

    • Welding complies with AWS D1.1 standard.
    • Internal and external welding makes the pole more beautiful in shape
    • CO2 welding or submerged arc auto methods
    • No fissure, scar, overlap, layer or other defects
    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Joint

    • Joint with insert mode, flange mode.

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Galvanization

    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Painting

    • According to clients' request

    Life Period

    • More than 25 years, it is according to installing environment

    Advantages

    • Short Construction Cycle
    • Low Overall Cost
    • Less Land Occupation
    • Weather Resistance
    • Easy Installation and Maintenance
    • Anti-corrosion
    • ODM & OEM are available
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers


    Description:


    The electric power market of the Phillipines is one of the most important market of our company.The Hot Dip Galvanized Electrical Power Steel Tubular Poles plays an important role in electrical power transmission and distribution industry.

    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

    In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.


    Product Details

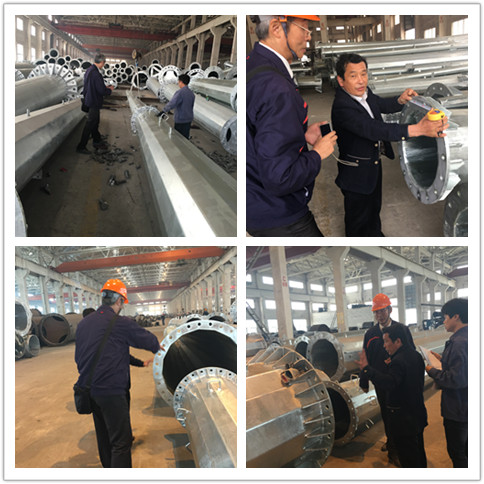

    Quality Control Management

    JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.






    Our Services

    • Reply within 24 Working Hours
    • Capable to Handle Volume Orders
    • More than 15 Years Design & Manufacture Experience
    • ODM, OEM Acceptable
    • High-Quality and Low-Price Products
    • Factory Direct Sale
    • Provide Professional Design by Our Experienced R&D Engineers
    • Rich Exporting Experience
    • Technical Support by E-mail
    • Calling service


    Please feel free to contact us!

    Hot Dip Galvanized Steel Tubular Pole for Electrical Power Transmission and Distribution Line, Outdoor Lighting Project, Telecommunication Industry, Traffic System, Wind Power Project.pdf
