Three Circuit Steel Polygonal Electric Power Distribution Poles Flange Connection

Jiangsu hongguang steel pole co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Three Circuit Steel Polygonal Electric Power Distribution Poles Flange Connection from wholesalers

    Buy cheap Three Circuit Steel Polygonal Electric Power Distribution Poles Flange Connection from wholesalers
    • Buy cheap Three Circuit Steel Polygonal Electric Power Distribution Poles Flange Connection from wholesalers

    Three Circuit Steel Polygonal Electric Power Distribution Poles Flange Connection

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Three Circuit Steel Polygonal Electric Power Distribution Poles Flange Connection


    Three Circuit Steel Polygonal Electric Power Steel Tubular Pole


    Specifications:


    Products

    • Three Circuit Steel Polygonal Electric Power Steel Tubular Pole

    Type

    • Suspension Pole , Strain Pole , Tensile Pole , Angle Pole , Dead-end Pole , etc

    Voltage Grade

    • 10-220KV

    Shape

    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Material

    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material

    Wall thickness

    • 2 .3~ 6mm

    Once Forming

    • 16m Once forming without joint

    Welding

    • Welding complies with AWS D1.1 standard.
    • No fissure, scar, overlap, layer or other defects
    • CO2 welding or submerged arc auto methods
    • If customers need any other requirements of welding, we also can make adjustment ad your request
    • Internal and external welding makes the pole more beautiful in shape

    Joint

    • Joint with insert mode, flange mode.

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Galvanization

    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Life Period

    • More than 25 years, it is according to installing environment


    Description:


    The electric power market of the Phillipines is one of the most important market of our company.

    The Hot Dip Galvanized Electrical Power Steel Tubular Poles plays an important role in electrical power transmission and distribution industry. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.


    In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Product Details




    Engineering and Design Management


    “Design and technology, software and hardware, professional and common” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.


    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



    Quality Control Management

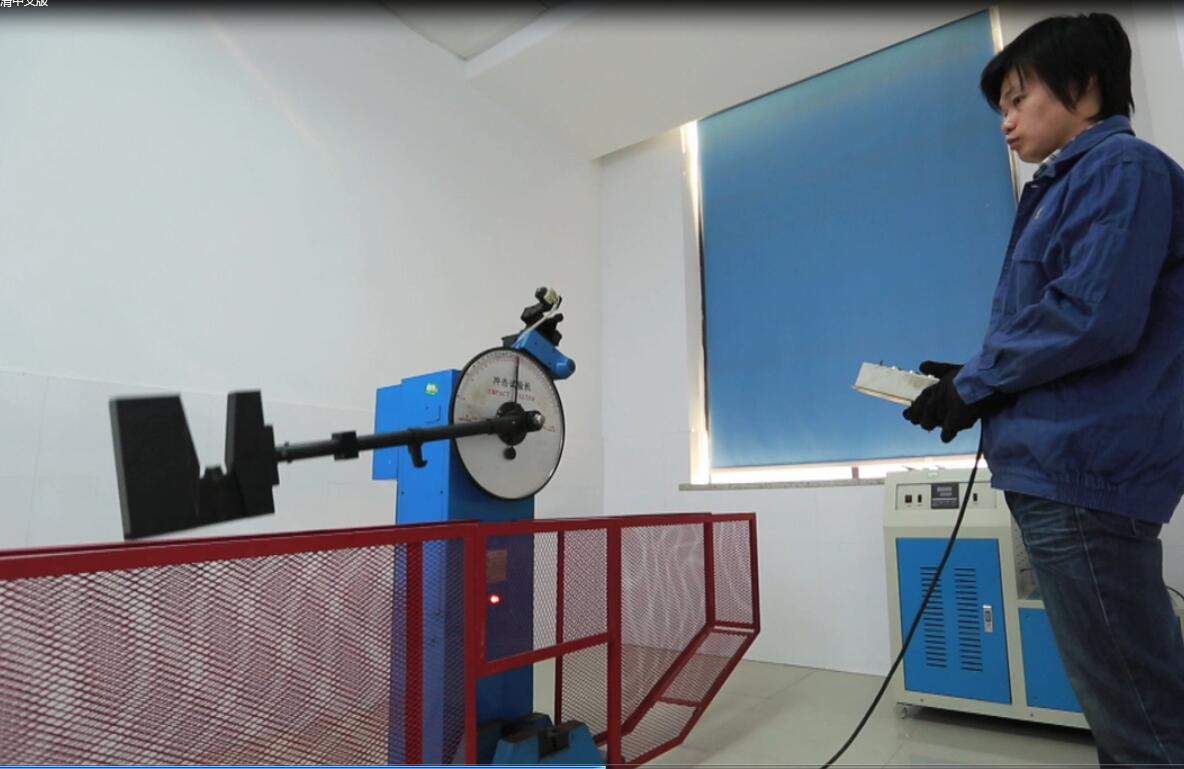

    JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.






    Our Services

    • Reply within 24 Working Hours
    • Factory Direct Sale
    • Capable to Handle Volume Orders
    • High-Quality and Low-Price Products
    • More than 15 Years Design & Manufacture Experience
    • Provide Professional Design by Our Experienced R&D Engineers
    • Rich Exporting Experience
    • ODM, OEM Acceptable
    • Calling service
    • Technical Support by E-mail


    Please feel free to contact us!

    Hot Dip Galvanized Steel Tubular Pole for Electrical Power Transmission and Distribution Line, Outdoor Lighting Project, Telecommunication Industry, Traffic System, Wind Power Project.pdf
