    ISO9001 Hot Dip Galvanized Transmission Line Pole / Electrical Transmission Poles

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    ISO9001 Hot Dip Galvanized Transmission Line Pole / Electrical Transmission Poles

    ISO9001 Certificated Hot Dip Galvanized 69KV Transmission Line Steel Pole


    Specifications:


    Application

    ISO9001 Certificated Hot Dip Galvanized 69KV Transmission Line Steel Pole

    Type

    Tensile Pole, Strain Pole , Suspension Pole, Angle Pole, Dead-end Pole, etc.

    Voltage
    Grade

    10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV,
    230KV, 330KV, 500KV or Others )

    Shape

    Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular,
    Tapered

    Material

    Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37,
    ST-44, ST-52, SS41, SS50, SS55, S355JR, S355J2G3 and others equivalent steel
    material

    Once Forming

    16m Once forming without joint

    Welding

    Welding complies with AWS D1.1 standard.
    CO2 welding or submerged arc auto methods
    No fissure, scar, overlap, layer or other defects
    If customers need any other requirements of welding, we also can make
    adjustment ad your request

    Internal and external welding makes the pole more beautiful in shape

    Joint

    Joint with insert mode, flange mode.

    Base plate

    Base plate is square / round / Polygon with slotted holes for anchor bolt and dimension
    as per client’s requirement.

    Galvanization

    Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and
    American standard ASTM A123.

    Painting

    According to clients' request

    Life Period

    More than 25 years, it is according to installing environment

    Advantages

    Short Construction Cycle
    Low Overall Cost
    Easy Installation and Maintenance

    Less Land Occupation
    Weather Resistance

    ODM & OEM are available
    Anti-corrosion
    Capable to Handle Volume Orders
    Provide Professional Design by Our Experienced R&D Engineers


    Description:


    The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years

    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

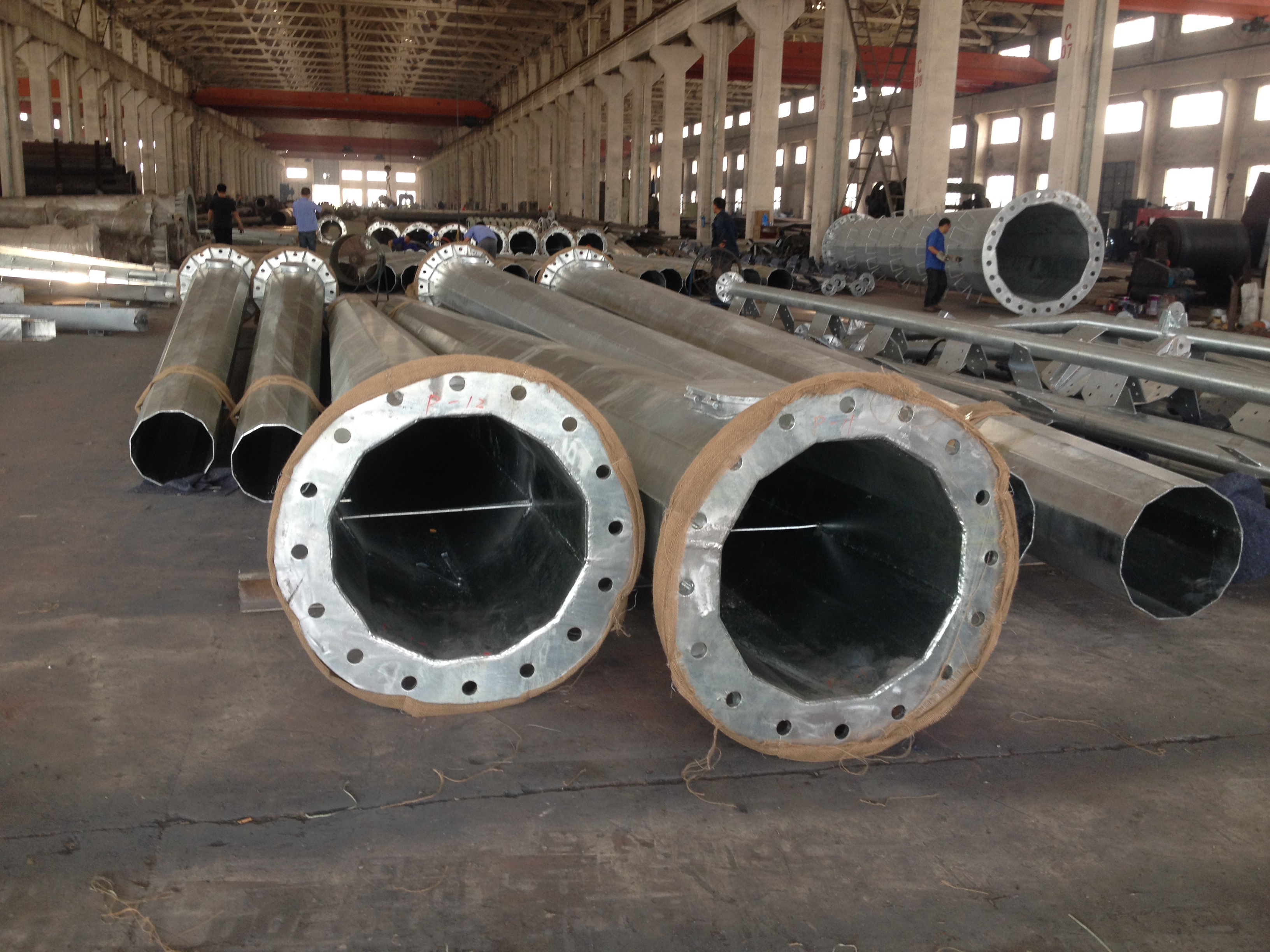

    Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.



    Product Details:



    Quality Control Management



    JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon
    and sulfur microcomputer analyzer etc.
    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.


    Packaging & Shipping:




    Terms and Conditions:


    1. Price Term: EXW, FOB, CFR or CIF.

    • The price includes pole shaft, base plate, cross arm and anchor bolt.
    • Shipping seaport: Shanghai Seaport.
    • Please provide drawings if you have so that we can calculate the accurate price for you.
    • We also provide design according to your requests, if you don't have drawings.

    2. MOQ: One 40FT Container.


    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


    4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.


    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.

    Our Services

    • Reply within 24 Working Hours
    • Factory Direct Sale
    • Technical Support by E-mail
    • Capable to Handle Volume Orders
    • High-Quality and Low-Price Products
    • Provide Professional Design by Our Experienced R&D Engineers
    • More than 15 Years Design & Manufacture Experience
    • Rich Exporting Experience
    • ODM, OEM Acceptable
    • Calling service


    Contact Us


    Jiangsu Hongguang Steel Pole Co., Ltd.


    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212


    Telephone: +86 510 878 441 56


    Fax: +86 510 878 435 28


    Mobile: +86 138 615 059 69


    Skype: tangjia870124

    Please feel free to contact us!
