Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm

Jiangsu hongguang steel pole co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm from wholesalers

    Buy cheap Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm from wholesalers
    • Buy cheap Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm from wholesalers

    Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-35KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO/drawing/prepayment confirmed
    • Product Details
    • Company Profile

    Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm


    Octagonal Steel Utility Pole for telecommunication system Q235 3-12mm


    Specifications:


    Products

    • Octagonal Steel Utility Pole for telecommunication system Q235 3-12mm

    Application

    • Telecommunication, broadcasting, etc

    Shape

    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagon, etc)
    Height
    • 7 ~ 30m

    Material

    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material

    Once Forming

    • 16m Once forming without joint

    Welding

    • Welding complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • No fissure, scar, overlap, layer or other defects
    • Internal and external welding makes the pole more beautiful in shape
    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Joint

    • Joint with insert mode, flange mode.

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Galvanization

    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Painting

    • According to clients' request

    Life Period

    • More than 25 years, it is according to installing environment
    Advantages
    • Short Construction Cycle
    • ODM & OEM are available
    • Less Land Occupation
    • Low Overall Cost
    • Provide Professional Design by Our Experienced R&D Engineers
    • Easy Installation and Maintenance
    • Weather Resistance
    • Anti-corrosion
    • Capable to Handle Volume Orders


    Description:


    Our steel utility monopole is manufactured by the most advanced production equipments including CNC plate production line, digital controlled drill (Max working aperture is φ80mm), CNC hydraulic bending machine which adopted LVD technology from Belgium and longitudinal welding machine from Lincoln Electric Company. Regarding corrosion resistance measure, we adopt hot dip galvanization technique which ensures service life as long as 50 years. Moreover, all steel utility monopole towers will be trail assembled before delivery which promises the smooth operation on installation site.

    The new modelsteel utility monopole has many advantages. It can be powder coated with different colors according to client’s requirement which not only beautify the environment but also prevent the pole from corrosion. What is more, telecommunication monopole tower occupies less land and needs short construction cycle which greatly reduces construction cost, but its easy installation and maintenance shows strong practicability.


    Product Details

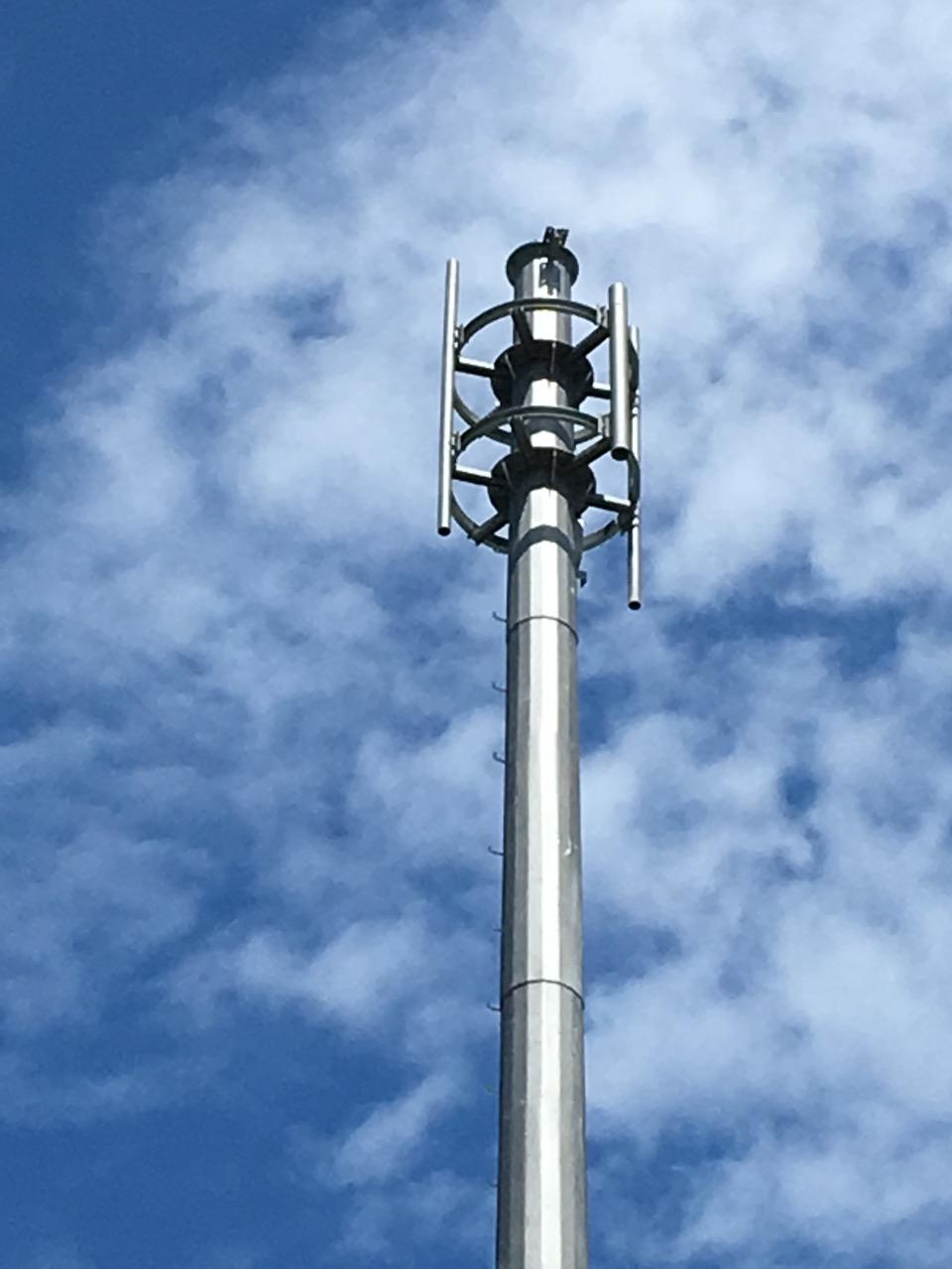

    Installation Site




    Production Process Flow Chart




    Terms and Conditions


    1. Price Term: EXW, FOB, CFR or CIF.

    The price includes pole shaft, base plate, cross arm and anchor bolt.

    Shipping seaport: Shanghai Seaport.

    Please provide drawings if you have so that we can calculate the accurate price for you.

    We also provide design according to your requests, if you don't have drawings.


    2. MOQ: One 40FT Container.


    3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


    4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.


    5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients requirement.


    Please feel free to contact us!

    Hot Dip Galvanized Utility Steel Tubular Pole for Electrical Power Transmission and Distribution Line, Telecommunication System.pdf
